Push button

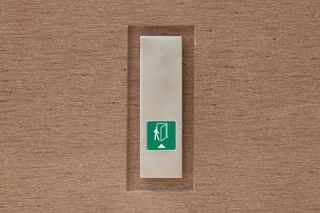

EFT elbow switch Stainless steel elbow switch with IP65 IP rating for activating automatic doors
- IP rating IP65
- Stainless steel
- Flat design with a height of 250 mm
- Large push switch for activation even with elbows
Application Areas
- Activation of automatic swing, sliding, folding, revolving and curved sliding doors
- Interior and exterior applications
- Surface-mounted installation
Installation situations in reference objects and videos
Technical data
EFT elbow switch | |
Dimensions | 75 x 250 x 17 mm |
IP rating | IP65 |
Type of installation | Surface-mounted |
Material | Stainless steel |
